Savox SV-1250MG

230

SV-1250MG
Savox – SV-1250MG Digital High Voltage Coreless Servo, Metal Gear

במלאי

קטגוריה: , , מקט: Savox SV-1250MG

תיאור

Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V – 7.4V
Servo Type / Size: Midi
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Servo Power – Torque Kg/cm: 5 – 10 Kg/cm
Servo Speed 60°/sec: 0.05 – 0.10 Sec/60°

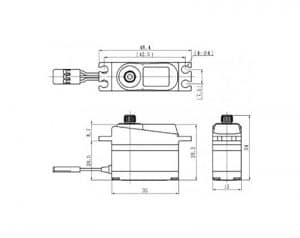

Length (mm): 35.0 mm
Width (mm): 15.0 mm
Height (mm): 29.2 mm
Weight (g): 29.5 g
Speed 60°/Sec @ 7.4V: 0.095 Sec/60°
Torque kg/cm @ 7.4V: 8.0 Kg/cm
Connector type: JR
Spline size: 25T Spline

Features:

– Leading edge digital servo technology
– High efficiency Coreless motor
– Accurate and fast response
– Super high resolution
– Aluminium center case for improved motor cooling and total strength
– Ball beared
– Precision Metal gears

Technical specifications:

Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V – 7.4V
Servo Type / Size: Midi
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Speed 60°/Sec @ 7.4V: 0.095 Sec/60°
Torque kg/cm @ 7.4V: 8.0 Kg/cm
Length (mm): 35.0 mm
Width (mm): 15.0 mm
Height (mm): 29.2 mm
Weight (g): 29.5 g
Connector type: JR
Spline size: 25T Spline
